Precision Silicon Pocket Wafer Machining: From Design Validation to Stable Manufacturing

01 April 2026

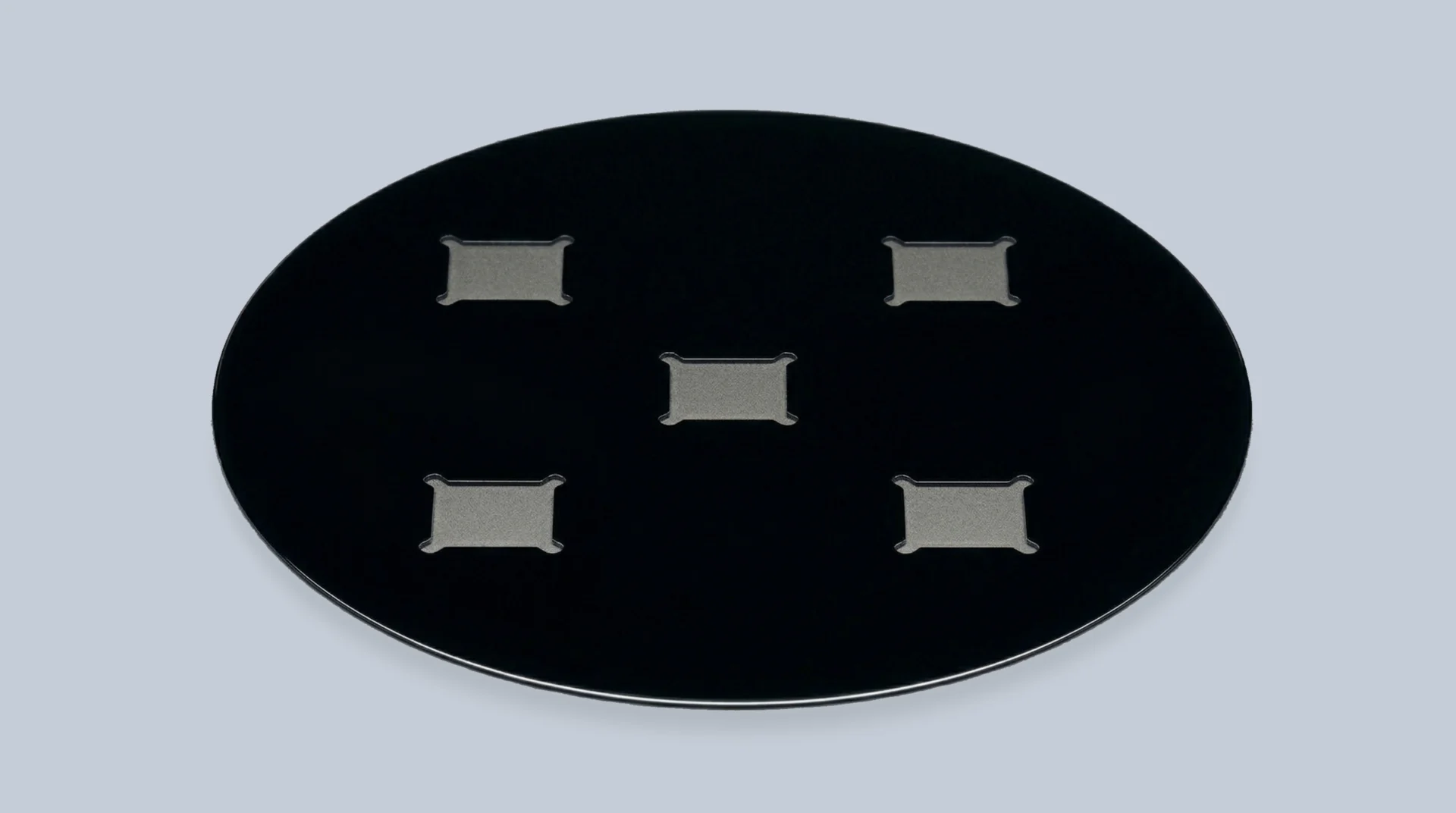

Custom silicon pocket wafer with precision cavities for MEMS and semiconductor applications

Custom silicon pocket wafer with precision cavities for MEMS and semiconductor applications

What Is a Pocket Wafer?

A Pocket Wafer (also known as a Cavity Wafer or Structured Wafer) is a silicon wafer containing precisely machined cavities or recessed features designed to support component placement, alignment, or packaging processes.

These wafers are widely used in:

  • MEMS device development
  • Advanced semiconductor packaging
  • Die embedding applications
  • Precision alignment structures

Unlike standard wafers, pocket wafers typically require customized manufacturing processes, iterative validation, and tight dimensional control.

Project Background: Custom Silicon Pocket Wafer Development

In a recent project, we supported a semiconductor technology developer in producing a custom single-crystal silicon pocket wafer.

The goal was not only to fabricate cavities according to drawing specifications, but to ensure repeatable manufacturing stability across multiple wafers.

The design required:

  • Multiple repeated cavity structures
  • Tight dimensional consistency
  • Reliable alignment performance
  • Compatibility with downstream semiconductor processes

Such structures are commonly used in:

  • MEMS component positioning
  • Advanced packaging
  • High-precision die placement

Because the cavities are repeated across the wafer, maintaining pattern consistency across all features becomes a key engineering challenge.

Manufacturing Challenges: Working with Single-Crystal Silicon

Single-crystal silicon offers:

  • Excellent dimensional stability
  • Semiconductor process compatibility
  • Favorable thermal properties

However, it is also a brittle material, which introduces several manufacturing challenges.

Edge Chipping and Micro-Crack Risk

During localized material removal, silicon is prone to:

  • Edge chipping
  • Micro-crack formation

These defects may not be immediately visible but can cause:

  • Process failures
  • Yield reduction
  • Reliability issues

Tight Dimensional Requirements

This project required:

  • Pocket depth tolerance: ±10 µm
  • Bottom flatness: < 5 µm
  • Edge chipping control: < 20–30 µm

At this level of precision, several factors become critical:

  • Tool wear
  • Machining strategy
  • Stress release behavior
  • Process repeatability

Even small variations can impact batch-to-batch consistency.

Thin Wafer Handling Challenges

As wafer thickness decreases, risks increase:

  • Warping
  • Cracking
  • Handling damage

Traditional fixturing methods often cannot provide sufficient support for thin wafers.

Engineering Solutions: Process Optimization and DFM Collaboration

To overcome these challenges, we applied a combination of process engineering and Design for Manufacturability (DFM) strategies.

Edge Geometry Optimization

Sharp internal corners increase fracture risk.

We recommended:

  • Controlled micro-radius or chamfer introduction
  • Maintaining functional geometry
  • Reducing edge stress concentration

This significantly improved edge integrity and yield.

Multi-Stage Machining and Finishing

A segmented manufacturing workflow was adopted:

  1. Precision cavity machining
  2. Controlled grinding
  3. Surface polishing

This approach ensured:

  • Bottom flatness stability
  • Surface finish consistency

Final surface roughness:

Ra 0.2–0.4 µm

Carrier Bonding for Thin Wafer Support

For thin wafer processing, we implemented:

Temporary carrier bonding

This method:

  • Provides mechanical rigidity
  • Reduces breakage risk
  • Enables safe post-process separation

Carrier-assisted machining is often essential for ultra-thin wafer applications.

Final Results: From Machinability to Manufacturability

The completed silicon pocket wafers achieved:

  • Pocket depth tolerance: ±10 µm
  • Batch variation control: within ±5 µm
  • Stable edge quality
  • Repeatable manufacturing consistency

More importantly, the project successfully transitioned from:

Design feasibility → Manufacturing feasibility

This milestone is critical for supporting:

  • Prototype validation
  • Process integration
  • Product development workflows

Typical Capabilities for Silicon Pocket Wafer Manufacturing

Our typical performance capabilities include:

  • Pocket depth tolerance: ±5–10 µm
  • Bottom flatness: < 5 µm
  • Edge chipping control: < 20–30 µm
  • Surface roughness: Ra < 0.2–0.4 µm

Supported processes include:

  • DFM optimization
  • Thin wafer carrier processing
  • Batch consistency control
  • Precision cavity fabrication

Applications of Pocket Wafer Structures

Pocket wafers are widely used in:

  • MEMS device fabrication
  • Advanced semiconductor packaging
  • High-precision alignment systems
  • Die embedding platforms
  • Microstructure validation testing

Because these applications demand both dimensional accuracy and process stability, manufacturing expertise plays a critical role in project success.

Engineering Partnership Approach

Pocket wafer development is fundamentally an integrated engineering challenge spanning both design and manufacturing.

From early-stage design to final validation, close collaboration between engineers and manufacturers helps:

  • Reduce risk
  • Improve yield
  • Accelerate development timelines

Our role extends beyond machining — we support engineering teams in transforming conceptual designs into stable, manufacturable components.

If your team is currently developing:

  • MEMS structures
  • Semiconductor packaging components
  • Precision alignment substrates

We welcome the opportunity to provide engineering-driven manufacturing support.
