Precision Focus Ring Machining: Enabling Stable Iteration in Semiconductor Process Development
What Is a Focus Ring (Edge Ring)?

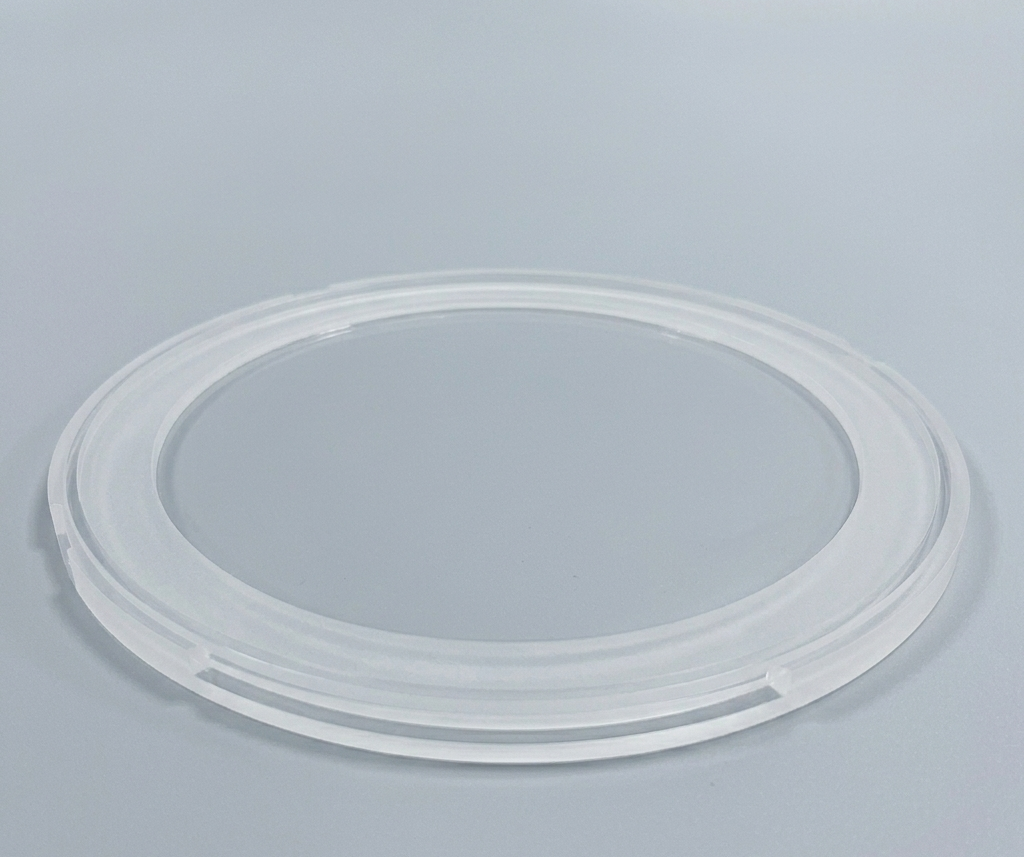

A Focus Ring (also known as an Edge Ring) is a critical component used in semiconductor plasma processing equipment.
It is positioned around the wafer and plays a key role in:
- Controlling plasma distribution
- Stabilizing electric field conditions
- Improving edge uniformity
Unlike static mechanical parts, focus rings are process-driven components, where geometry directly affects plasma behavior and process outcomes.
Project Background: When Design Is Still Evolving
In semiconductor equipment development, a focus ring is rarely finalized in the early stages.
Its design parameters—including:
- Inner diameter
- Thickness
- Edge profile
- Material selection
are frequently adjusted as engineers optimize process performance.
In this project, the customer—a semiconductor equipment R&D engineer—was facing a critical issue:
- Stable performance in the wafer center
- Poor and inconsistent uniformity at the wafer edge
The root cause was traced back to the focus ring geometry .
However, the real bottleneck was not design—it was manufacturing responsiveness.
Without fast and consistent sample production, each design iteration becomes slow and unreliable.
Manufacturing Challenges: Geometry, Material, and Process Interaction
1. Geometry Directly Affects Process Results
Unlike conventional components, focus ring features are functional:
- Edge chamfers influence plasma density
- Inner diameter affects electric field distribution
- Thickness impacts process uniformity
This means:
Machining variation = Process variation
Therefore, consistency is more critical than absolute dimensional accuracy alone.
2. Hard and Brittle Material Behavior
Focus rings are commonly made from:
- Quartz (SiO₂)
- Alumina (Al₂O₃)
- Silicon Carbide (SiC)
These materials introduce machining risks such as:
- Edge chipping
- Micro-cracks
- Surface damage
Even if dimensions are within tolerance, these defects can:
- Distort plasma behavior
- Reduce process repeatability
3. Tight Tolerances for Process Stability
Typical tolerance requirements in this project included:
- Outer diameter: ±20–50 µm
- Inner diameter: ±10–30 µm
- Thickness tolerance: ±10–30 µm
- Total thickness variation (TTV): < 10–20 µm
- Flatness / concentricity: ~10–30 µm
Edge condition requirements:
- Chamfer: C0.1–0.5 mm
- Radius: R0.1–0.3 mm
- Edge chipping: < 20–50 µm
- Surface roughness: Ra 0.2–0.8 µm
At this level, maintaining batch-to-batch consistency becomes the true challenge.
Engineering Approach: Supporting Iteration, Not Just Final Parts
Material Strategy for Development Efficiency
Instead of immediately using high-cost materials, we recommended:
- Quartz for early-stage prototyping
This allows:
- Faster turnaround
- Lower iteration cost
- More flexible design validation
Once the design converges, transition to:
- Alumina → improved durability
- SiC → higher performance and lifetime
DFM-Based Geometry Optimization
Sharp edges increase the risk of:
- Chipping
- Inconsistent edge quality
We introduced:
- Controlled chamfers or radii
- Manufacturable edge profiles
This ensured:
- Reduced defect risk
- Improved repeatability
- Stable plasma interaction
Stable and Repeatable Machining Strategy
Our focus was not achieving perfection in a single iteration—but ensuring:
- Every version is consistent
- Differences reflect design changes, not machining variation
This enables engineers to:
- Accurately evaluate process changes
- Avoid misleading test results
Results: When Testing Becomes Reliable
After multiple design iterations:
- Focus ring geometry gradually converged
- Edge uniformity showed measurable improvement
- Sample-to-sample variation was significantly reduced
Most importantly:
Test results became reliable and comparable
This allowed the engineering team to:
- Identify true process variables
- Accelerate development cycles
At this stage, the customer began:
- Transitioning to alumina
- Evaluating SiC for long-term production
Applications of Focus Rings in Semiconductor Equipment
Focus rings are widely used in:
- Plasma etching systems
- Deposition equipment
- Semiconductor process chambers
As device nodes continue to shrink, requirements for:
- Edge uniformity
- Plasma stability
- Process repeatability
become increasingly critical.
Engineering Partnership Approach
Focus ring development is not just about machining—it is about enabling R&D progress.
In many cases, the biggest risk is not design complexity, but:
- Slow iteration cycles
- Inconsistent sample quality
- Unreliable test data
Our role is to eliminate these uncertainties by providing:
- Rapid prototyping capability
- Stable and repeatable machining
- Engineering-driven DFM feedback
So engineers can focus on what matters most:
Process optimization—not part variability
From Prototype to Production Stability
In semiconductor development, time is one of the most critical costs.
When each iteration is:
- Fast
- Consistent
- Reliable
the entire development cycle accelerates.
If your team is working on:
- Focus rings / edge rings
- Plasma process optimization
- Ceramic or quartz components
we can support your project with engineering-driven manufacturing solutions designed for rapid iteration and stable results.
Engineering Note
The images and examples presented in this article are intended to illustrate common engineering concepts and representative industry practices. To protect customer confidentiality, certain dimensions, geometries, specifications, and application details may have been modified while preserving the underlying engineering principles.
