What Is a CMP Retaining Ring?
A CMP retaining ring is a critical consumable component used in Chemical Mechanical Planarization (CMP) processes in semiconductor manufacturing.
Mounted on the outer perimeter of the carrier head, the retaining ring plays a key role in:
– Maintaining wafer position during polishing
– Controlling edge pressure distribution
– Improving overall polishing uniformity
In practical applications, engineers often rely on retaining ring design and material selection to address:
– CMP edge removal non-uniformity
– Wafer edge over-polishing
– Process instability in polishing performance
As a result, the CMP retaining ring is not just a mechanical component—it is a process-critical element that directly impacts wafer yield and consistency.

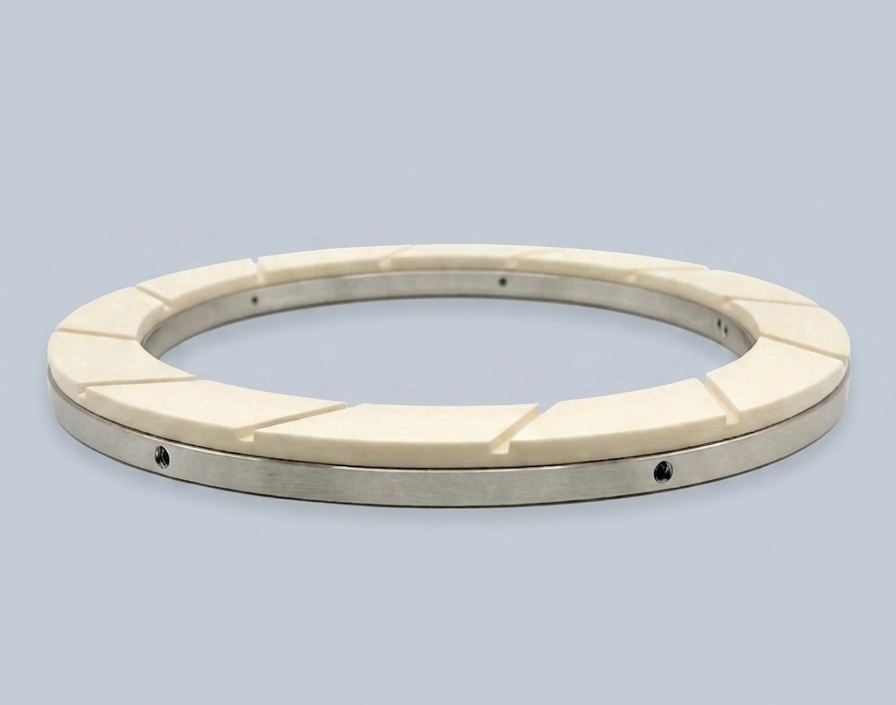

Project Background: PPS + Stainless Steel CMP Retaining Ring
In this project, we supported the development of a custom CMP retaining ring designed for semiconductor wafer polishing applications.
The structure consisted of:
– A PPS (Polyphenylene Sulfide) contact ring
– A precision-machined stainless steel structural ring
This type of component is commonly classified as a CMP consumable, requiring periodic replacement while maintaining consistent performance throughout its lifecycle.
Key requirements included:
– High roundness and dimensional stability
– Uniform segmented geometry for pressure consistency
– Predictable wear behavior during CMP processes
– Compatibility with slurry chemistry and operating conditions
In many cases, engineers actively search for reliable:
– CMP retaining ring suppliers
– Retaining ring manufacturers
– Wafer polishing consumable providers
to ensure process stability and long-term yield performance.
Manufacturing Challenges: Wear Behavior, Pressure Control, and Geometric Precision
The complexity of CMP retaining ring manufacturing lies in balancing precision machining with real process performance.
PPS Material Behavior and Wear Control
PPS is widely used in CMP retaining rings due to its:
– Excellent chemical resistance
– Low particle generation
– Controlled wear characteristics
However, it introduces several machining and performance challenges:
– Thermal sensitivity leading to dimensional drift
– Surface condition affecting slurry interaction
– Long-term wear consistency under CMP conditions
Non-uniform wear can directly result in:
– Edge removal variation
– Wafer edge polishing instability
Segmented Retaining Ring Geometry
Segmented retaining ring designs introduce additional complexity:
– Each segment must maintain tight dimensional consistency
– Angular deviations can disrupt pressure distribution
– Interface gaps must be controlled to prevent particle generation
If not properly managed, these factors may lead to:
– Localized over-polishing
– Non-uniform material removal rates
– Reduced process stability
Stainless Steel Structural Precision
The stainless steel ring provides:
– Mechanical rigidity
– Dimensional stability
– Precision interface with CMP equipment
Critical machining factors include:
– Concentricity control
– Flatness and parallelism
– Precision groove and interface features
Any deviation in the metal structure can amplify performance variation during polishing.
Engineering Solutions: Enhancing CMP Process Stability
Segment Matching and Precision Control
Each PPS segment was:
– Individually machined and inspected
– Matched for dimensional consistency
– Controlled for angular accuracy
This ensured:
– Uniform pressure distribution
– Stable wafer edge interaction
Thermal and Stress Control in PPS Machining
To minimize deformation:
– Low-heat cutting strategies were implemented
– Optimized toolpaths reduced localized heat buildup
– Intermediate stress-relief steps improved stability
This resulted in:
– Improved dimensional consistency
– More predictable wear behavior
High-Precision Stainless Steel Machining
The stainless steel structure was produced using:
– Precision turning for concentric features
– Controlled machining of interface geometries
– Strict tolerance management
Ensuring:
– Reliable structural support
– Stable integration with PPS segments
Clean Assembly for Semiconductor Compatibility
Given the cleanroom environment requirements:
– Assembly processes minimized particle generation
– Interface gaps were tightly controlled
– Surface cleanliness was maintained
This is essential for maintaining compatibility with semiconductor CMP processes.
Final Results: From Component Manufacturing to Process Performance
The completed CMP retaining ring achieved:
– Stable geometric consistency across all segments
– Predictable and uniform PPS wear behavior
– Reliable structural integrity
– Improved wafer edge polishing uniformity
More importantly, the project successfully supported the transition from:
Component manufacturing → Process performance optimization
This is critical in semiconductor applications where even minor variations can significantly impact yield.
CMP Retaining Ring Manufacturing Capabilities
Our capabilities include:
– Segment dimensional consistency: ±10–20 µm
– Roundness control: < 20 µm
– Flatness control: < 10–20 µm
– Metal surface roughness: Ra < 0.8 µm
We support:
– CMP retaining ring manufacturing
– PPS and PEEK retaining ring machining
– Semiconductor CMP consumables development
– Batch consistency and replacement stability
Applications and Industry Demand
CMP retaining rings are widely used in:
– Wafer polishing (CMP) processes
– Advanced semiconductor manufacturing
– Process development and yield optimization
– Consumable replacement cycles in CMP tools
Because retaining rings are wear components, engineers frequently evaluate:
– Wear performance consistency
– Replacement intervals
– Supplier reliability
Selecting the right retaining ring manufacturer is essential for maintaining process stability and minimizing downtime.
Engineering-Driven Manufacturing Approach
CMP retaining ring development is not just about machining—it is an integrated engineering challenge that directly affects process performance.
Our approach focuses on:
– Material selection (PPS, PEEK, ceramics)
– Design for manufacturability (DFM)
– Wear behavior optimization
– Process stability improvement
If your team is currently sourcing or developing:
– CMP retaining rings
– Wafer polishing consumables
– Precision polymer-metal hybrid components
We provide engineering-driven manufacturing solutions tailored for semiconductor applications.
Engineering Note
The images and examples presented in this article are intended to illustrate common engineering concepts and representative industry practices. To protect customer confidentiality, certain dimensions, geometries, specifications, and application details may have been modified while preserving the underlying engineering principles.
