What Is an End Effector?
An End Effector is a critical component in semiconductor equipment, directly responsible for handling and transferring wafers between process stages.
Unlike general mechanical parts, end effectors must simultaneously achieve:
- High dimensional stability
- Excellent flatness for wafer contact
- Low contamination characteristics
- Long-term operational reliability
Because the end effector directly interfaces with wafers, its performance has a direct impact on yield, positioning accuracy, and equipment stability.
Project Background: Thin Ceramic End Effector for Wafer Handling
In this project, we supported a semiconductor equipment developer in manufacturing a custom ceramic end effector designed for 200 mm and 300 mm wafer handling systems.
The selected material was Alumina (Al₂O₃), widely used due to its balance of:
- Mechanical strength
- Wear resistance
- Cost-effectiveness
- Process compatibility
The design focused on a large-area thin structure, with a local thickness of approximately 1 mm .
Key functional requirements included:
- Maintaining wafer contact stability
- Ensuring consistent flatness across the contact surface
- Minimizing risk of wafer scratching
- Supporting dynamic robotic motion
At this level, the challenge extends beyond machining—it becomes a combined engineering problem involving material behavior, structural design, and process control.
Manufacturing Challenges: Thin Alumina Structure and Process Risks
- Deformation and Flatness Control
As thickness approaches 1 mm, structural rigidity decreases significantly.
This leads to:
- Warping during machining
- Residual stress-induced deformation
- Difficulty maintaining flatness
Target specification in this project:
- Flatness: < 10 µm
Even minor internal stress variations can compromise final geometry.
- Brittle Material Behavior
Alumina is a hard and brittle ceramic, which introduces risks such as:
- Edge chipping
- Micro-cracks
- Local fracture during machining
These defects may not always be visible during inspection but can lead to:
- Reduced reliability
- Potential wafer damage
- Long-term failure under repeated operation
- Thin Plate Handling and Fixturing Limitations
Traditional clamping methods become ineffective for ultra-thin ceramic parts.
Key risks include:
- Uneven support leading to deformation
- Vibration-induced damage
- Increased breakage probability
As a result, process stability becomes a primary engineering concern, not just machining precision.
Engineering Solutions: Process Optimization and DFM Integration
To address these challenges, we implemented a combination of process engineering and Design for Manufacturability (DFM) strategies.
Segmented Machining and Stress Control
A multi-stage machining approach was applied:
- Controlled material removal
- Gradual stress release
- Intermediate correction processes
Followed by:
- Precision grinding
- Surface finishing
This ensured:
- Stable flatness control
- Improved surface integrity
Dedicated Support and Fixturing Design
A custom support strategy was developed to:
- Distribute force evenly
- Reduce vibration
- Maintain structural stability during machining
This is essential for thin ceramic components where support conditions directly affect final accuracy.
Edge Condition Optimization
Through DFM collaboration, we introduced:
- Micro chamfers or edge radii
- Stress concentration reduction
Without compromising functional geometry, this approach:
- Reduced chipping risk
- Improved yield
- Enhanced long-term reliability
Final Results: From Machinability to Manufacturing Stability
The final alumina end effector achieved:
- Flatness: < 10 µm
- Stable structural integrity at ~1 mm thickness
- Consistent quality across multiple units
- Reliable wafer handling performance
More importantly, the project successfully transitioned from:
Design feasibility → Manufacturing feasibility → Stable production capability
This transition is critical in semiconductor equipment development, where consistency matters more than one-off success.
Extended Capabilities: Ceramic Materials and Micro-Machining
Beyond this project, we support a wide range of advanced ceramic materials:
- Alumina (Al₂O₃) – balanced performance and cost
- Silicon Carbide (SiC) – high stiffness and thermal stability
- ESD Ceramics (Conductive / Anti-static Ceramics) – for electrostatic control
In addition, we offer micro-feature machining capabilities, including:
- Hole diameter: 0.15–0.3 mm
- Consistent hole geometry in brittle materials
- Clean edge quality
These capabilities are commonly applied in:

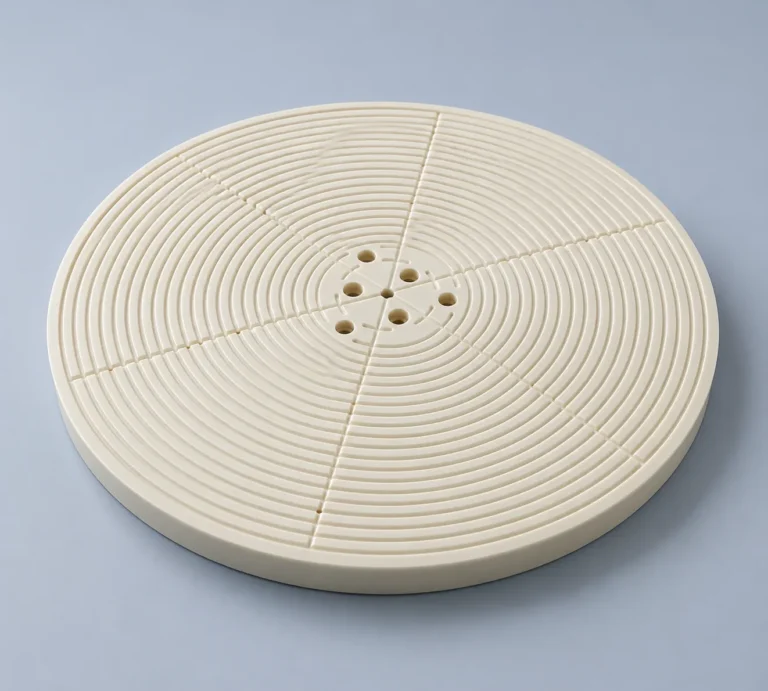

- Vacuum adsorption structures
- Precision flow channels
- Advanced wafer handling designs
Applications of Ceramic End Effectors
Ceramic end effectors are widely used in:
- Semiconductor wafer transfer systems
- Vacuum handling environments
- High-precision robotic arms
- Cleanroom automation equipment
As device geometries become more advanced, requirements for:
- Flatness
- Cleanliness
- Structural stability
continue to increase, making manufacturing expertise a key differentiator.
Engineering Partnership Approach
The development of a ceramic end effector is not just a machining task—it is a multi-disciplinary engineering integration challenge.
Our role extends beyond fabrication:
- Early-stage DFM collaboration
- Process risk evaluation
- Manufacturing strategy optimization
- Stable production support
By working alongside R&D teams, we help:
- Reduce development uncertainty
- Improve yield
- Accelerate product realization
If your team is developing:
- Wafer handling systems
- Semiconductor equipment components
- Thin ceramic structures
we can provide engineering-driven manufacturing support to turn your design into a stable, production-ready solution.
Engineering Note
The images and examples presented in this article are intended to illustrate common engineering concepts and representative industry practices. To protect customer confidentiality, certain dimensions, geometries, specifications, and application details may have been modified while preserving the underlying engineering principles.
