Precision Alumina Machining: Achieving 25µm Micro Features on a 2 mm Thin Ceramic Part

Challenges in Thin Alumina Machining for Precision Ceramic Components

In precision ceramic machining, thin alumina parts with micro features represent one of the most technically demanding categories.

When a component is only 2 mm thick and requires ultra-shallow grooves down to 25 microns, maintaining dimensional stability, surface consistency, and edge integrity becomes significantly more complex than standard CNC machining.

This case study demonstrates how precision CNC machining of alumina can successfully achieve these requirements—without relying on laser or chemical etching processes.

Application: Alumina Platform for Optical and Semiconductor Systems

This component is used inside a high-precision optical system as a structural platform for alignment and support.

The material selected is Alumina 99.5%, offering:

• Excellent electrical insulation
• High hardness and wear resistance
• Stable thermal and dimensional properties
• Strong environmental durability

Such precision ceramic components are widely used in:

• Semiconductor equipment
• Optical instrumentation
• Analytical and sensing systems

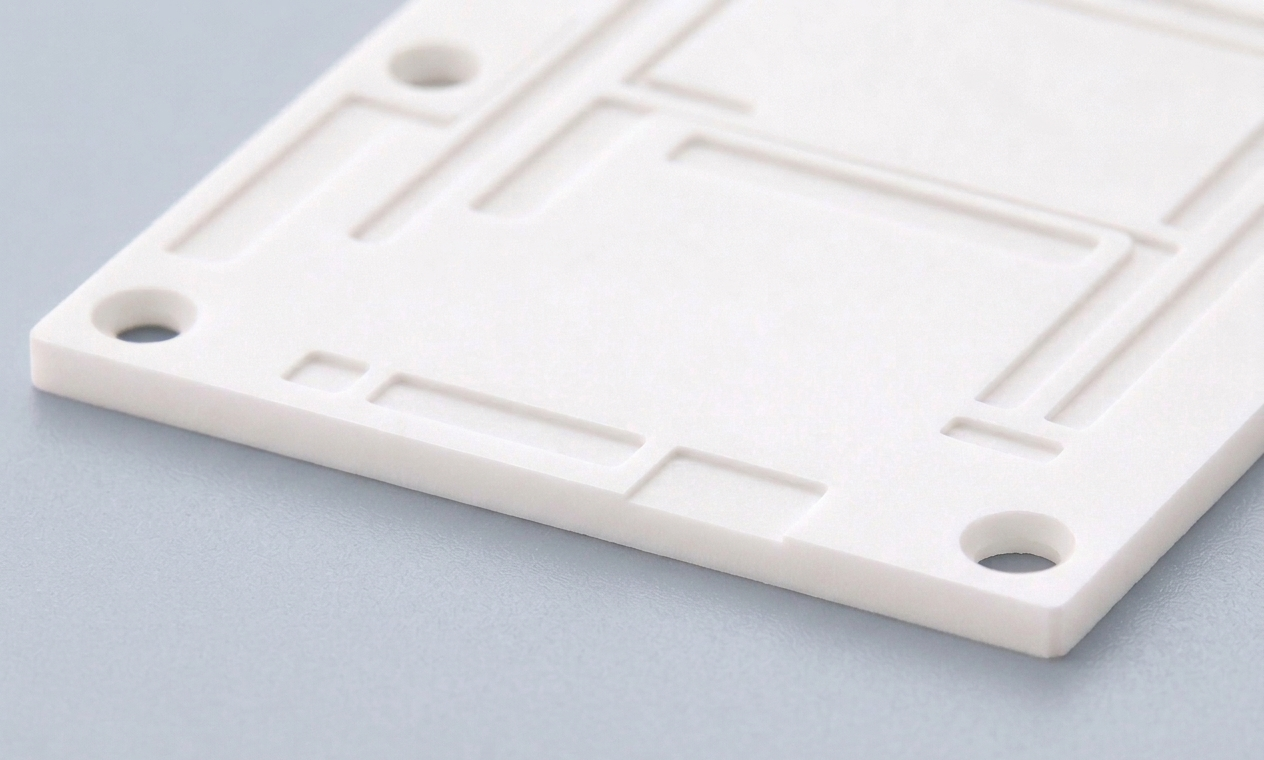

Design Features: Thin Structure with Shallow Micro Grooves

This project involves a high-difficulty geometry combining thin structure and micro-scale features:

• Overall thickness: 2 mm (thin ceramic part)
• Standard recessed features: 0.130 mm depth
• Localized micro features: 0.025 mm (25 µm micro grooves)
• Distributed multi-zone engraving pattern
• Edge chipping limitations and internal corner radius constraints

Unlike metals, alumina machining is governed by brittle material removal mechanisms, making shallow groove machining particularly challenging.

Key Challenges in Alumina CNC Machining

1. Structural Stability of Thin Ceramic Parts

At only 2 mm thickness, the component has limited rigidity.
Improper fixturing or uneven cutting forces may result in:

• Edge chipping
• Micro cracking
• Local deformation

2. Controlling 25µm Shallow Grooves

Compared to deeper features, ultra-shallow grooves are more sensitive to process variation:

• Tool wear directly affects depth accuracy
• Surface reference deviations become critical
• Process stability must be tightly controlled

At the 25 µm scale, even minimal variation can lead to functional deviation.

3. Multi-Zone Consistency

With features distributed across multiple regions, achieving uniformity requires:

• Controlled tool paths
• Stable machining conditions
• Careful process sequencing

Consistency across zones is often more difficult than achieving a single precise feature.

4. Edge Quality and Chipping Control

Due to the brittle nature of alumina:

• Edges are prone to chipping
• Internal corners require controlled radii
• Thin structures increase risk during machining

Maintaining edge integrity is critical for both performance and yield.

Engineering Approach: Precision Mechanical Machining

All features in this project were achieved using precision mechanical CNC machining, without laser or etching processes.

The machining strategy focused on:

• Optimized process sequencing to minimize stress
• Stable fixturing for thin ceramic components
• Controlled cutting conditions for micro feature generation
• Refined tool path strategies for multi-zone consistency

Through this approach, both standard and micro-scale features were successfully achieved.

Results: Precision with Scalable Production Capability

The final outcome demonstrates that alumina CNC machining can meet both precision and production requirements:

• Reliable machining of 2 mm thin ceramic parts
• Successful control of 25 µm micro features
• High consistency across multiple regions
• Edge chipping controlled within specification
• Production capability at ~500 pieces scale

This confirms that precision ceramic CNC machining remains a robust solution for micro-feature applications.

Our Capabilities in Precision Ceramic Machining

We specialize in advanced ceramic materials, including:

• Alumina (Al₂O₃)
• Silicon Carbide (SiC)
• Quartz / Fused Silica
• Optical Glass
• ESD / Conductive Ceramics

Our capabilities include:

• Thin ceramic machining (≤2 mm)
• Micro feature machining (≤25 µm)
• High-mix, low-volume to mid-volume production
• Process control for consistent quality

Looking for a Precision Alumina Machining Partner?

If your application involves:

• Thin ceramic components
• Micro grooves or shallow features
• Optical or semiconductor systems

We can support your project from DFM evaluation to production.

Contact us to discuss your precision ceramic machining requirements.
