What Is an Alumina Ceramic Mask Plate?
An alumina ceramic mask plate (also known as a ceramic shadow mask or process mask plate) is a precision component used inside semiconductor equipment for selective deposition, plasma masking, and process control.
These components are typically manufactured from high-purity alumina (Al₂O₃, 99.5%–99.7%), offering:
- High thermal stability for high-temperature processes
- Electrical insulation for sensitive environments
- Excellent plasma resistance
- Dimensional stability in vacuum conditions
They are widely used in:
- PVD (Physical Vapor Deposition) processes
- CVD (Chemical Vapor Deposition) systems
- Plasma etching equipment
- Advanced semiconductor process modules
Unlike conventional metal stencils, ceramic mask plates are designed for contamination-sensitive semiconductor environments, where material purity and stability are critical.
Project Background: Custom Alumina Mask Plate for Semiconductor Equipment

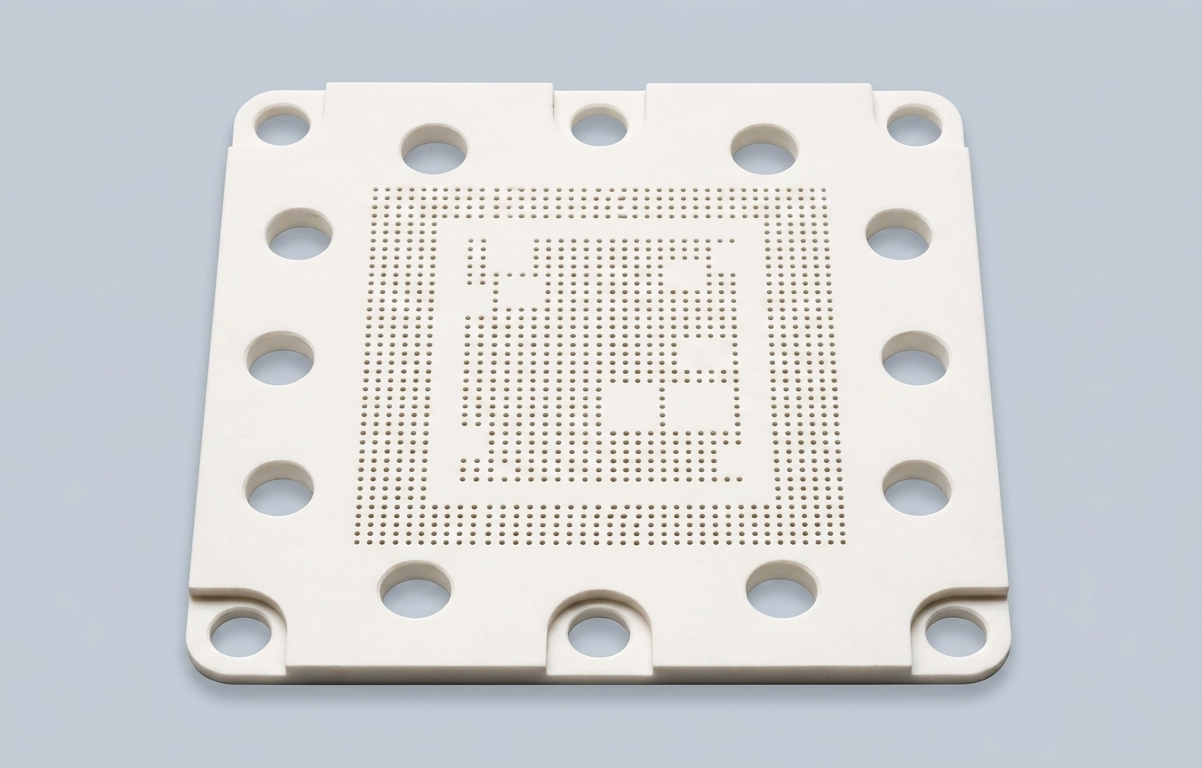

In this project, we supported a semiconductor equipment customer in developing a custom alumina ceramic mask plate (approximately 20–30 mm in size) for in-chamber use.
The design required:
- High-density micro-hole array
- Precise hole positioning aligned with process patterns
- Stability under plasma exposure and thermal cycling
- Consistent dimensional performance across batches
Such components are commonly used for:
- Selective deposition masking
- Plasma process shielding
- Micro-pattern definition in semiconductor processes
Because each hole directly affects process behavior, precision and repeatability are critical for process stability.
Challenges in Alumina Ceramic Micro-Hole Machining
Machining alumina ceramic components involves significant challenges due to its brittle nature and high hardness.
Micro-Hole Drilling and Edge Chipping Control
During ceramic micro-hole machining, common issues include:
- Edge chipping at hole entrances
- Micro-crack formation
- Variation in hole diameter
These defects can result in:
- Non-uniform gas or material distribution
- Pattern distortion in deposition processes
- Reduced process yield
Tight Tolerance and Pattern Accuracy
This project required:
- Hole diameter tolerance: ±5–10 µm
- Positional accuracy: ±10 µm
- High consistency across the entire hole array
At this level, key factors include:
- Tool wear and tool life stability
- Machining strategy and toolpath control
- Thermal and mechanical deformation
- Batch-to-batch repeatability
Even small deviations can impact semiconductor process performance.
Thin Ceramic Plate Stability and Fixturing
For small and thin ceramic plates, typical risks include:
- Warping during machining
- Stress-induced deformation
- Fracture caused by unstable clamping
Conventional fixturing methods often cannot provide sufficient support for precision ceramic components.
Solutions for Precision Ceramic Mask Plate Manufacturing
To address these challenges, we implemented a combination of process optimization and DFM (Design for Manufacturability) strategies.
Optimized Ceramic Micro-Hole Machining Process
- Multi-stage machining (roughing + finishing)
- Controlled cutting parameters to reduce stress
- Optimized toolpath for uniform hole geometry
This improves:
- Hole diameter consistency
- Edge integrity
- Overall manufacturing yield
Edge Geometry Optimization for Ceramic Parts
Sharp edges increase fracture risk in brittle materials.
We recommended:
- Micro chamfer or controlled edge radius
- Maintaining functional geometry while reducing stress concentration
This enhances manufacturability and reliability.
Custom Fixturing for Thin Ceramic Components
For thin alumina plates:
- Dedicated fixturing solutions were designed
- Load distribution was optimized
- Clamping stress was minimized
This significantly reduces the risk of breakage during machining.
Controlled Manufacturing Workflow
The production process included:
- Precision micro-hole machining
- Controlled grinding and stabilization
- Cleaning and final inspection
This ensures consistent geometry and repeatable production quality.
Final Results: From Machining Capability to Process Stability
The finished alumina ceramic mask plates achieved:
- Hole diameter tolerance: ±5–10 µm
- Positional accuracy: ±10 µm
- Edge chipping control: < 20 µm
- Stable batch-to-batch consistency
More importantly, the project successfully transitioned from design feasibility to manufacturing feasibility.
This transition is critical for:
- Semiconductor process validation
- Equipment integration
- Scalable production
Typical Capabilities for Alumina Ceramic Components
As a precision ceramic component supplier, our capabilities include:
- Micro-hole machining down to Ø0.2–0.3 mm for stable production
- Hole sizes as small as Ø0.1 mm achievable depending on thickness and geometry
- Tight tolerance control (±5–10 µm)
- High positional accuracy for patterned features
- Stable batch production consistency
We support:
- Custom alumina ceramic parts
- Semiconductor equipment components
- Micro-hole array ceramic structures
- Prototype to production scaling
Semiconductor Applications of Alumina Ceramic Mask Plates
Alumina ceramic mask plates are widely used in:
- PVD and CVD deposition systems
- Plasma etching equipment
- Selective masking and pattern control
- Advanced packaging processes
Because these applications require high precision, plasma resistance, and contamination control, material selection and machining expertise are critical.
Precision Ceramic Component Supplier for Semiconductor Industry
As a supplier of precision ceramic components, we support semiconductor equipment manufacturers with:
- Custom alumina ceramic mask plates
- Ceramic carriers and fixtures
- Plasma-resistant ceramic parts
- High-precision micro-hole machining services
Our role extends beyond machining — we collaborate with engineering teams to transform complex designs into stable, manufacturable ceramic components.
Engineering Collaboration Approach
Developing semiconductor ceramic components requires close collaboration between design and manufacturing teams.
We help customers:
- Optimize designs for manufacturability (DFM)
- Reduce technical risks
- Improve yield and consistency
- Accelerate development timelines
If your team is currently looking for:
- Alumina ceramic mask plate supplier
- Precision ceramic machining service
- Micro-hole ceramic component manufacturing
- Semiconductor equipment ceramic parts
We welcome the opportunity to support your project from prototyping to production.
Engineering Note
The images and examples presented in this article are intended to illustrate common engineering concepts and representative industry practices. To protect customer confidentiality, certain dimensions, geometries, specifications, and application details may have been modified while preserving the underlying engineering principles.
