PEEK Wafer Support Rail Machining: Enabling Stable Wafer Handling and Process Consistency

15 April 2026

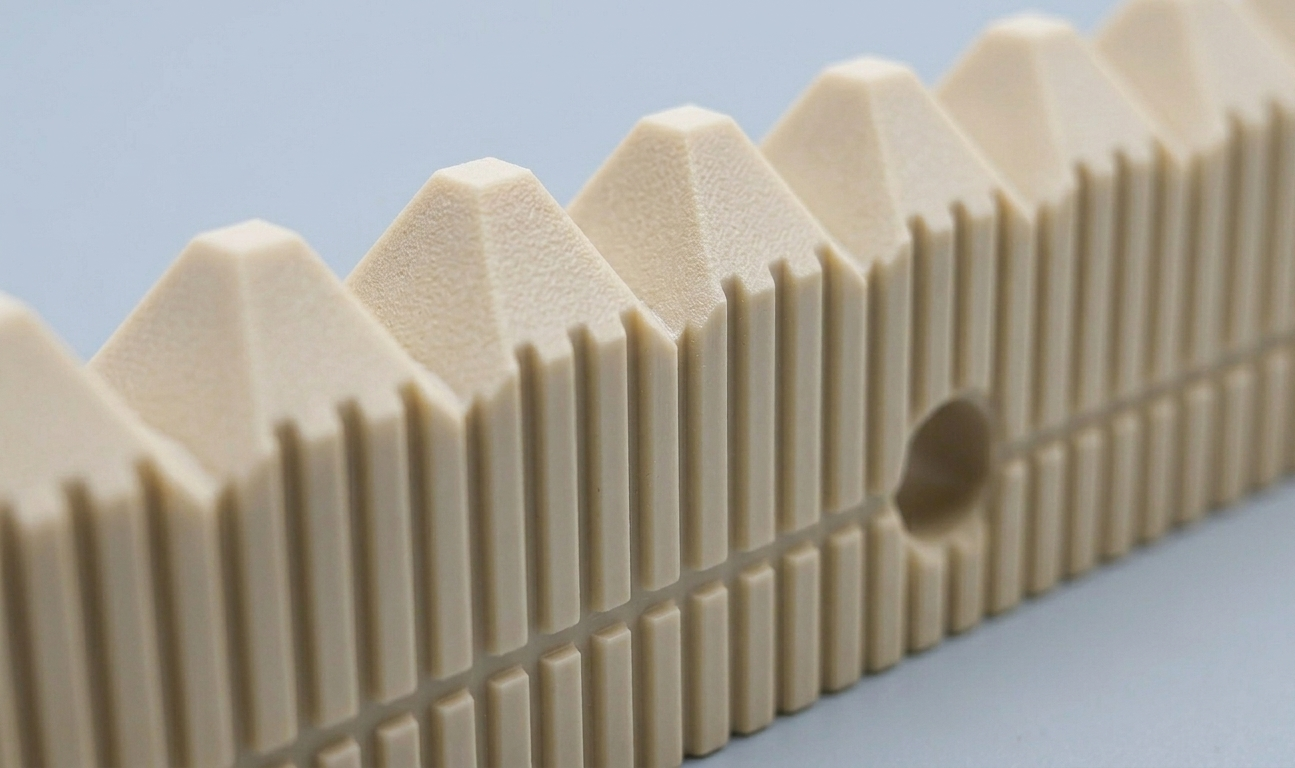

PEEK wafer support rail with serrated edge design for semiconductor wafer handling and wet process systems

What Is a Wafer Support Rail?

A wafer support rail is a precision component used in semiconductor equipment to support wafers by their edges during:

  • Wet processing (cleaning, rinsing, drying)
  • Wafer handling and transfer systems
  • Temporary storage and buffer modules

Unlike flat-contact fixtures, wafer support rails are designed to:

  • Minimize contact area
  • Prevent particle contamination
  • Reduce the risk of wafer edge chipping

These components play a critical role in maintaining process stability—especially in contamination-sensitive environments.

Project Background: When Support Design Affects Process Results

In this project, the customer—an equipment R&D engineer—was optimizing a wafer handling and cleaning process.

Key issues included:

  • Wafer instability during support
  • Inconsistent liquid drainage after cleaning
  • Potential contamination from contact surfaces

The root cause was traced not to the system itself, but to:

The geometry and machining quality of the wafer support component

However, the real challenge was not just redesign—it was:

Finding a supplier capable of producing consistent, repeatable parts for fast iteration

Manufacturing Challenges: Geometry, Material, and Process Interaction

  1. High-Density Serrated Structure (Precision Micro Machining)

The rail features a serrated edge design to:

  • Provide multi-point edge support
  • Minimize wafer contact area
  • Maintain uniform load distribution

Machining challenges include:

  • Tight pitch consistency across the entire length
  • Tool wear affecting dimensional accuracy
  • Accumulated tolerance deviation over long features

In wafer handling applications:

Machining variation directly translates into process variation

  1. Long, Slender Geometry with PEEK Material Behavior

PEEK is widely used in semiconductor environments due to:

  • Excellent chemical resistance
  • Low contamination risk
  • High temperature capability

However, from a machining perspective, PEEK introduces:

  • Thermal deformation
  • Elastic recovery after machining
  • Sensitivity to clamping stress

For long rail components, maintaining:

  • Straightness
  • Flatness
  • Hole alignment

becomes a critical challenge.

  1. Edge Quality Control (Critical for Wafer Contact)

The wafer edge is one of the most sensitive zones in semiconductor processing.

Any defects such as:

  • Burrs
  • Sharp edges
  • Surface tearing

can lead to:

  • Particle generation
  • Wafer edge chipping
  • Process contamination

To address this, careful control is required for:

  • Edge geometry (chamfer or radius)
  • Surface integrity
  • Consistent finishing across all contact points

Even when dimensions are within tolerance, poor edge quality can compromise the entire process.

  1. Functional Surface Features (Drainage & Contact Optimization)

The fine grooves along the rail are functional, not cosmetic.

They help to:

  • Reduce effective contact area
  • Improve liquid drainage
  • Minimize liquid retention and adhesion

These features must be machined with:

  • Consistent geometry
  • Clean surface finish
  • Stable process control

Engineering Approach: Prioritizing Repeatability Over One-Time Precision

In this project, our focus was not just achieving tight tolerances on a single part—but ensuring:

Stable, repeatable machining across every iteration

Our approach included:

Process Stability Control

  • Tool wear management strategy
  • Optimized cutting parameters for PEEK
  • Multi-stage machining to reduce internal stress

DFM-Driven Design Optimization

  • Introducing controlled chamfers to reduce chipping risk
  • Refining serration geometry for manufacturability
  • Ensuring design scalability for production

Consistency-Oriented Quality Control

  • Controlling pitch accumulation error
  • Maintaining straightness across long parts
  • Ensuring alignment of mounting features

Results: Reliable Testing and Faster Development Cycles

After multiple design and machining iterations:

  • Wafer support stability improved significantly
  • Surface contamination risks were reduced
  • Sample-to-sample variation was minimized

Most importantly:

Test results became consistent and reliable

This allowed the engineering team to:

  • Isolate real process variables
  • Accelerate development cycles
  • Move confidently toward production validation

Applications in Semiconductor Equipment

PEEK wafer support components are commonly used in:

  • Wet bench cleaning systems
  • Wafer transfer and handling modules
  • Buffer stations and cassette structures
  • Custom semiconductor automation equipment

As device sensitivity increases, the demand for:

  • Low contamination materials
  • Stable support geometry
  • High repeatability

continues to grow.

Why Engineering Teams Choose the Right Machining Partner

In semiconductor development, the biggest bottleneck is often not design—but:

  • Slow prototype turnaround
  • Inconsistent part quality
  • Unreliable test results

A capable machining partner provides:

  • Fast and responsive prototyping
  • Consistent, repeatable quality
  • Engineering-driven DFM feedback

So your team can focus on:

Process development—not part variability

From Prototype to Production-Ready Components

When each iteration is:

  • Fast
  • Consistent
  • Reliable

your development cycle accelerates significantly.

Looking for a Reliable Supplier for Wafer Support Components?

If your team is working on:

  • Wafer support rails
  • Wafer handling fixtures
  • PEEK semiconductor components

we provide precision CNC machining solutions designed for:

  • Rapid prototyping
  • Stable iteration cycles
  • Production-ready consistency
