ITO Coating (Indium Tin Oxide): Transparent Conductive Film Technology and a High Sheet Resistance Application Case Study
What Is ITO Coating?
ITO (Indium Tin Oxide) is one of the most widely used transparent conductive materials in the electronics, semiconductor, and photonics industries.
Many advanced applications require a material that can simultaneously provide:
- High optical transparency
- Electrical conductivity
Traditional metals offer excellent conductivity but block light transmission. Materials such as glass, quartz, and sapphire provide excellent optical transparency but are electrically insulating.
ITO bridges this gap by combining transparency and conductivity in a single thin-film solution, making it a critical material for:
- Semiconductor equipment
- Optical instruments
- Sensors
- Display technologies
- Biomedical devices
- Research and development platforms
Composition and Properties of ITO
ITO is primarily composed of:
- Indium Oxide (In₂O₃)
- Tin Oxide (SnO₂)
Through controlled doping with tin oxide, the material achieves a high concentration of free charge carriers while maintaining excellent optical transmission.
Typical properties include:
| Property | Typical Value |
| Optical Transmittance | 80–95%+ |
| Electrical Resistivity | Approximately 10⁻⁴ to 10⁻³ Ω·cm |
| Refractive Index | Approximately 1.8–2.1 |
| Spectral Range | Visible to Near-Infrared |
| Appearance | Transparent to Slightly Yellow |
Why Is ITO Both Transparent and Conductive?
ITO belongs to a class of materials known as Transparent Conductive Oxides (TCOs).
Its wide bandgap, typically around 3.5–4.0 eV, allows visible light to pass through with minimal absorption, while free electrons within the material provide electrical conductivity.
This unique combination makes ITO one of the most mature and widely adopted transparent conductive coatings available today.
Common ITO Deposition Methods
The most common manufacturing process for ITO films is sputtering deposition.
RF Magnetron Sputtering
RF sputtering is commonly used for:
- Glass
- Quartz
- Sapphire
- Ceramics
- Silicon wafers
Advantages include:
- Excellent coating uniformity
- Precise thickness control
- Strong film adhesion
- Suitable for both prototyping and production
As a result, RF sputtering is widely used in semiconductor, optical, and research applications.
DC Magnetron Sputtering
DC sputtering is often selected for:
- Large-area glass substrates
- Display manufacturing
Key benefits include:
- Higher deposition rates
- Improved production efficiency
- Lower manufacturing costs
This process is commonly found in LCD, touchscreen, and large-format optical coating applications.
Understanding the Relationship Between Film Thickness and Sheet Resistance
When specifying an ITO coating, two critical parameters are typically considered:
- Film Thickness
- Sheet Resistance
In general:
- Thicker films tend to have lower resistance.
- Thinner films tend to have higher resistance.
However, sheet resistance is influenced by far more than film thickness alone.
Other critical factors include:
- ITO target composition
- Oxygen flow ratio
- Chamber vacuum conditions
- Substrate temperature
- Sputtering power
- Post-deposition heat treatment
As a result, two coatings with the same thickness can exhibit significantly different electrical properties.
This is why custom specifications often require process validation and test runs before production.

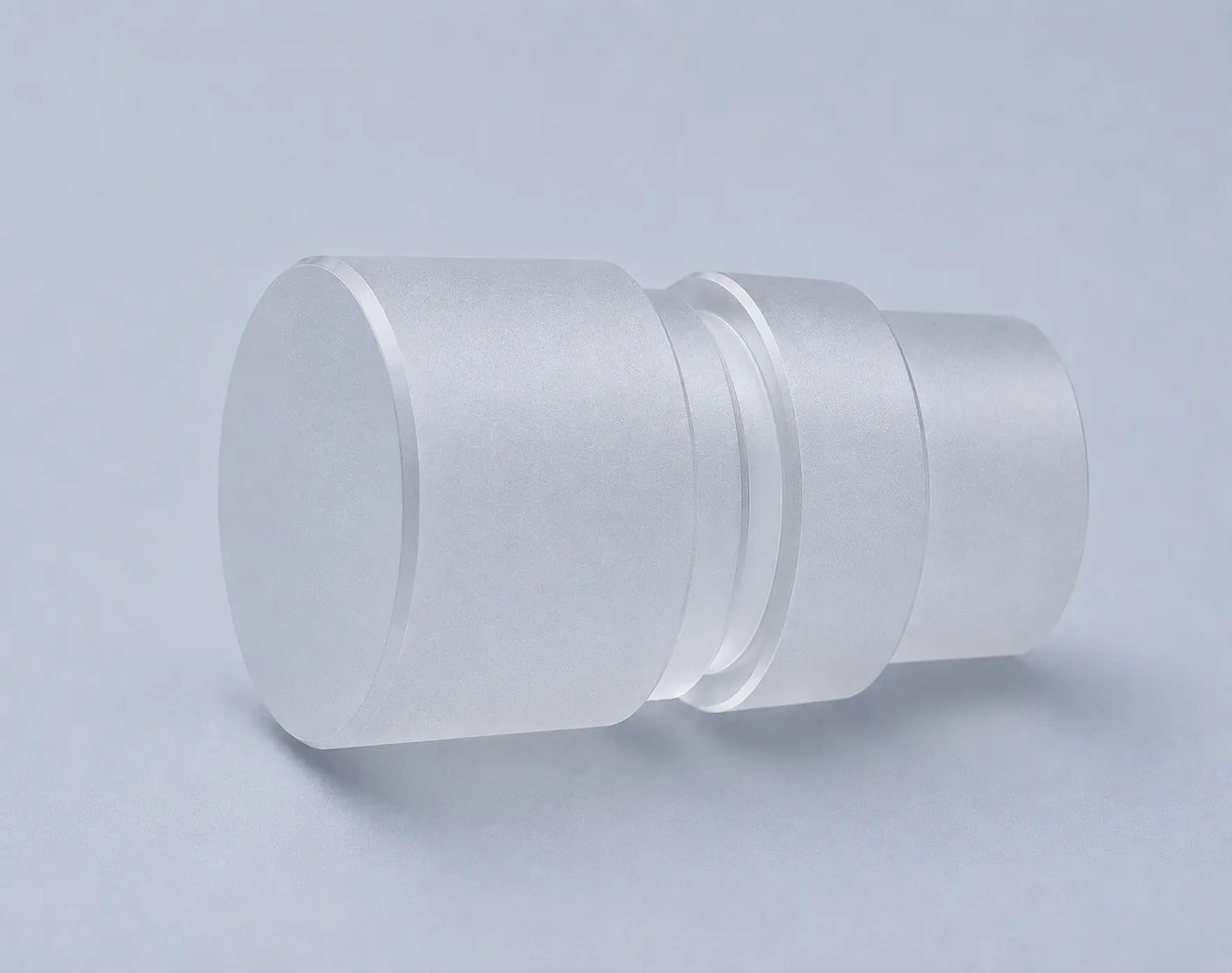

Case Study: 150nm ITO Coating with a Target Sheet Resistance of 2000 Ω/sq
In one customer project, we were asked to evaluate a relatively uncommon ITO coating specification.
Customer Requirements
- Substrate: Sapphire
- ITO Thickness: 150 nm
- Target Sheet Resistance: 2000 Ω/sq
- ITO coating required only in selected areas
- Non-functional regions must remain as bare sapphire
This specification differs significantly from conventional commercial ITO applications.
The customer’s focus was not on achieving the lowest possible resistance, but rather on obtaining:
- Specific electrical characteristics
- Controlled optical performance
- Functional sensing behavior
- Precisely defined conductive regions
Why Is This Specification Unusual?
Most commercial ITO applications are designed to achieve low sheet resistance.
Typical ranges include:
| Application | Typical Sheet Resistance |
| LCD Displays | 10–100 Ω/sq |
| Touch Panels | 50–300 Ω/sq |
| OLED Displays | 10–50 Ω/sq |
| Heated Glass | 5–50 Ω/sq |
In contrast, this project specified:
- 150 nm film thickness
- 2000 Ω/sq sheet resistance
This combination represents a significantly higher resistance target than what is commonly found in mass-production applications.
Such requirements are more often encountered in:
- Optical research systems
- Advanced sensor development
- Electric field control devices
- Semiconductor R&D equipment
- Custom laboratory platforms
In these applications, the objective is often to achieve a specific electrical behavior rather than maximum conductivity.
Why Can High-Resistance ITO Be More Challenging?
Many engineers assume that achieving low resistance is always the primary challenge.
In reality, maintaining a relatively high sheet resistance while simultaneously meeting a specified film thickness can require more sophisticated process control.
For specifications such as:
- 150 nm thickness
- 2000 Ω/sq target resistance
Process optimization may involve:
- Oxygen flow adjustments
- Deposition parameter tuning
- Thin-film microstructure control
- Test coupon validation
As a result, these projects often require process development and qualification rather than simply applying an existing production recipe.
What Is Selective ITO Coating?
In addition to the electrical requirements, this project included another important challenge:
Only specific regions of the substrate required conductivity.
In other words:
- Functional regions needed ITO coating.
- Non-functional regions had to remain uncoated.
This type of requirement is commonly addressed through selective coating techniques using masking or patterning processes.
Typical applications include:
- Optical windows
- Sensor regions
- Conductive electrodes
- Localized heating elements
- Specialized photonic devices
Benefits of selective ITO coating include:
Preserving Optical Performance
Uncoated regions maintain their original optical characteristics.
Reducing Secondary Processing
Minimizes the need for etching or laser patterning.
Improving Reliability
Helps prevent unintended electrical paths and signal interference.
Increasing Design Flexibility
Allows conductive regions to be defined precisely where needed.
Why Is ITO on Sapphire Increasingly Popular?
While ITO-coated glass remains common, many advanced systems are increasingly utilizing ITO-coated sapphire substrates.
Sapphire offers several advantages:
Exceptional Hardness
With a Mohs hardness of approximately 9, sapphire provides excellent wear resistance.
High Temperature Resistance
Suitable for vacuum and elevated-temperature environments.
Outstanding Optical Properties
Excellent transmission from the visible spectrum into the near-infrared range.
Chemical Stability
Ideal for harsh semiconductor and research environments.
As a result, ITO on sapphire is frequently used in:
- Semiconductor equipment viewing windows
- Vacuum chamber observation ports
- Laser systems
- Optical metrology equipment
- Research instruments
Information Needed for an ITO Coating Evaluation
To properly evaluate an ITO coating project, the following information is typically recommended:
Substrate Material
Examples include:
- Glass
- Quartz
- Sapphire
- Silicon
Coating Area
- Full-surface coating
- Selective coating
Desired Film Thickness
Examples:
- 50 nm
- 100 nm
- 150 nm
- 200 nm
Target Sheet Resistance
Examples:
- 20 Ω/sq
- 100 Ω/sq
- 500 Ω/sq
- 2000 Ω/sq
Optical Transmission Requirements
Examples:
- 85%
- 90%
- 95%
Operating Environment
Examples:
- Vacuum environments
- High-temperature environments
- UV exposure
- Chemically aggressive environments
Providing complete specifications helps improve development efficiency and reduce project risk.
Conclusion
ITO (Indium Tin Oxide) has become an essential material in modern semiconductor, photonics, and research applications. However, as technology advances, requirements increasingly extend beyond standard commercial specifications.
Projects involving:
- Sapphire substrates
- 150 nm ITO thickness
- 2000 Ω/sq sheet resistance
- Selective coating regions
represent a more specialized category of transparent conductive film applications.
Successfully developing these solutions often requires not only coating equipment, but also a deep understanding of materials, process optimization, and application-specific requirements. Through proper testing and validation, customized ITO coatings can provide tailored electrical and optical performance for advanced semiconductor, optical, and research systems.
