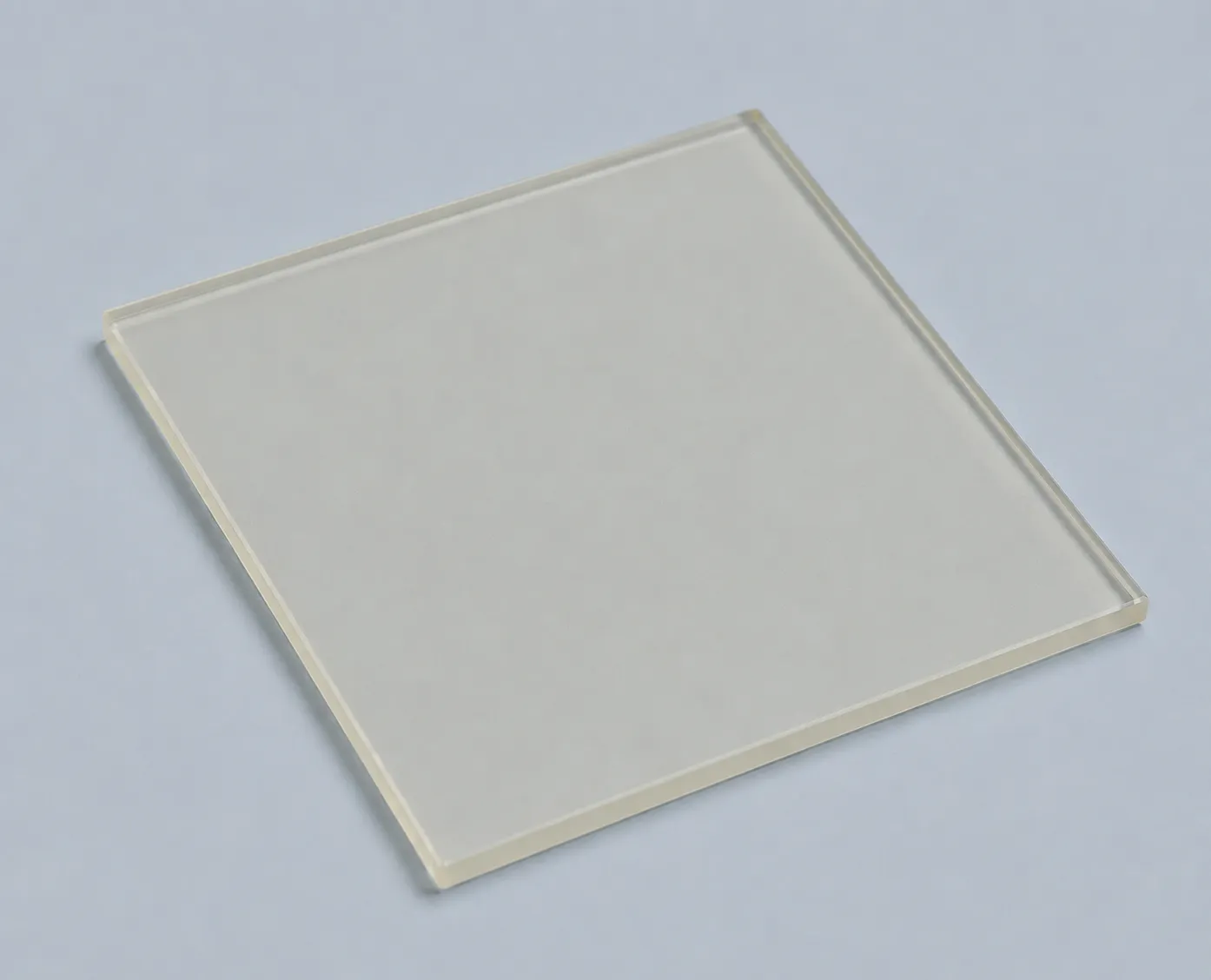

Custom ITO Coating Specifications: How to Select Sheet Resistance, Film Thickness, and Substrate
Introduction
Indium Tin Oxide (ITO) is one of the most widely used transparent conductive coatings for semiconductor equipment, optical systems, scientific instruments, sensors, and electronic devices. Although ITO is a mature coating technology, there is no universal specification suitable for every application.
Rather than selecting a standard coating, engineers typically define performance requirements such as electrical conductivity, optical transmission, substrate material, and coating geometry. These requirements determine the appropriate coating parameters and, in some cases, require custom process development.
Why Custom Specifications Matter
ITO coatings are designed around application requirements rather than fixed industry standards.
Typical design considerations include:
- Required sheet resistance
- Film thickness
- Optical transmission
- Substrate material
- Full or selective coating
- Masking requirements
- Operating environment
Instead of requesting “an ITO coating,” engineers usually specify the performance they need, allowing the deposition process to be optimized accordingly.
Key ITO Specifications
| Parameter | Why It Matters |
| Sheet Resistance | Determines electrical conductivity |
| Film Thickness | Balances conductivity and optical transmission |
| Optical Transmission | Controls light transmission |
| Substrate Material | Influences adhesion and deposition conditions |
| Coating Area | Defines full or selective coating |
| Masking | Protects areas that remain uncoated |
| Uniformity | Ensures stable electrical and optical performance |
Typical Commercial ITO Specifications
The table below summarizes common commercial ITO coating ranges. Actual values vary depending on deposition method, substrate, and process conditions.
| Film Thickness | Typical Sheet Resistance | Market Availability | Typical Applications |
| 15–30 nm | 300–1,000 Ω/sq | Less Common | Anti-static, research, optical applications |
| 25–60 nm | 80–300 Ω/sq | Common | Sensors, photonics, transparent electrodes |
| 60–100 nm | 20–100 Ω/sq | Very Common | Displays, touch panels, optical devices |
| 100–160 nm | 8–30 Ω/sq | Most Common | General transparent conductive electrodes |
| 150–250 nm | 4–15 Ω/sq | Common | Heating glass, high-conductivity applications |
| 250–400 nm | 2–10 Ω/sq | Less Common | EMI shielding, specialized applications |
Standard Production vs. Custom Parameter Development
Most commercial ITO coatings are produced using well-established manufacturing parameters. However, some engineering projects require electrical and optical performance that falls outside these standard ranges.
Examples include:
- Non-standard sheet resistance
- Specific film thickness requirements
- Optical transmission optimization
- New substrate materials
- Selective coating or masking
- Prototype development
- Tight electrical tolerances
Rather than selecting the closest available coating, these projects often benefit from parameter optimization to achieve the required performance.
Our Engineering Development Approach
Every application is different. Instead of relying solely on predefined coating recipes, we work with customers to evaluate the most appropriate coating parameters based on their functional requirements.
Our development process typically includes:
- Engineering review of application requirements
- Evaluation of coating parameters
- Prototype coating
- Electrical and optical verification
- Production parameter validation
This approach helps reduce technical risk while improving manufacturing consistency before volume production.
When Process Development Is Required
Many ITO coatings can be manufactured using standard production parameters. However, certain combinations require additional engineering development.
For example:
- Sheet Resistance: 1,000–3,000 Ω/sq
- Film Thickness: 150 nm
Although both specifications are achievable individually, this combination is outside typical commercial production because thicker ITO films normally exhibit much lower sheet resistance.
Projects like these usually require prototype evaluation and process optimization before production.
Choosing the Right Substrate
ITO coatings can be deposited on a variety of materials depending on the application.
| Substrate | Typical Applications |
| Glass | Displays, sensors, optical windows |
| Quartz | UV optics, scientific instruments |
| Sapphire | Semiconductor and optical components |
| Silicon | MEMS and semiconductor research |
| Technical Ceramics | High-temperature electronic applications |
Each substrate has unique thermal expansion, surface characteristics, and adhesion properties that influence the deposition process.
Information to Include in Your RFQ
Providing complete project information enables faster technical evaluation and more accurate quotations.
A typical RFQ should include:
- Substrate material
- CAD drawing or PDF
- Component dimensions
- Target sheet resistance
- Target film thickness
- Coating area
- Masking requirements
- Quantity
- Prototype or production
The more complete the project information, the more efficiently coating parameters can be evaluated and optimized.
Conclusion
Successful ITO coatings are defined by application requirements rather than fixed specifications. While many projects can be manufactured using established commercial parameters, others require customized process development to achieve the desired electrical and optical performance.
Whether your project involves a new substrate, a unique sheet resistance target, or a non-standard film thickness, early engineering collaboration helps reduce development risk and improve production success.
If your application falls outside standard commercial specifications, our engineering team can assist in evaluating and developing customized ITO coating parameters for both prototype and production projects.
Engineering Note
The images and examples presented in this article are intended to illustrate common engineering concepts and representative industry practices. To protect customer confidentiality, certain dimensions, geometries, specifications, and application details may have been modified while preserving the underlying engineering principles.
