CNC Machining in Titanium

Titanium’s resistance to corrosion in harsh environments and its biocompatibility make it ideal for a variety of applications. It also offers excellent strength and durability.

Advantages of Titanium

Titanium, a lightweight and corrosion-resistant metal, is highly regarded for its exceptional strength-to-weight ratio. Widely used in aerospace, medical implants, and sporting equipment.

Key Features
High Strength-to-Weight Ratio
High Melting Point
Non-Magnetic
Good Corrosion Resistance
Available Titanium Specifications

The following table shows common titanium alloys. If you have any other alloy requirements, please contact us.

Titanium Grade 2

Tensile Strength
Elongation at Break
Hardness
Density

62,400 PSI

20%

Rockwell B98

0.163 lb/in³
(4.51 g/cm³)

Titanium Grade 5

Tensile Strength
Elongation at Break
Hardness
Density

138,000 PSI

14%

Rockwell C36

0.160 lb/in³
(4.43 g/cm³)

Titanium Surface Finishes

The following table shows common surface finishes for titanium.

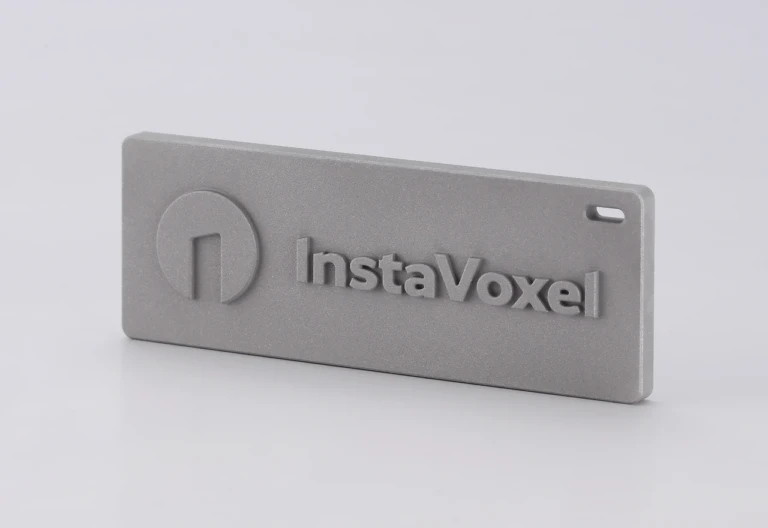

Bead Blast

Heat Treat

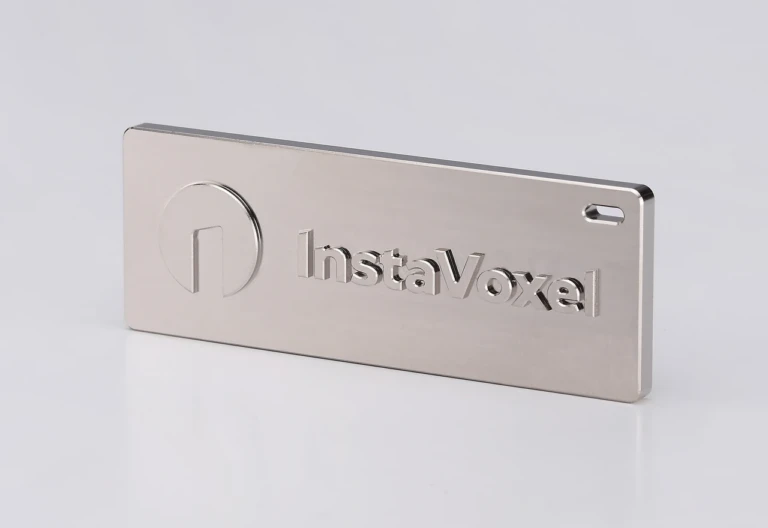

Electroless Nickel Plating

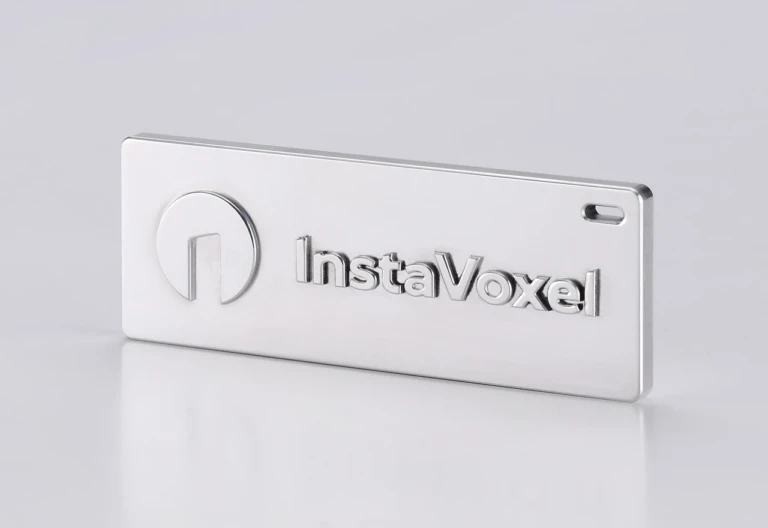

Polishing

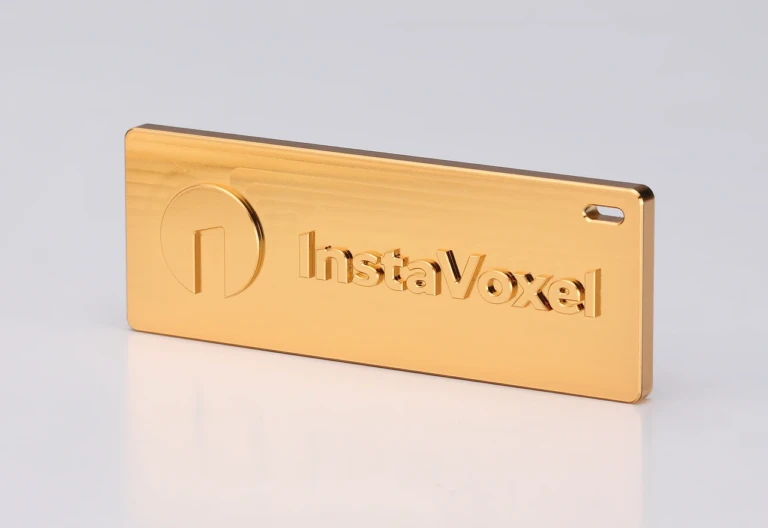

Gold Plating

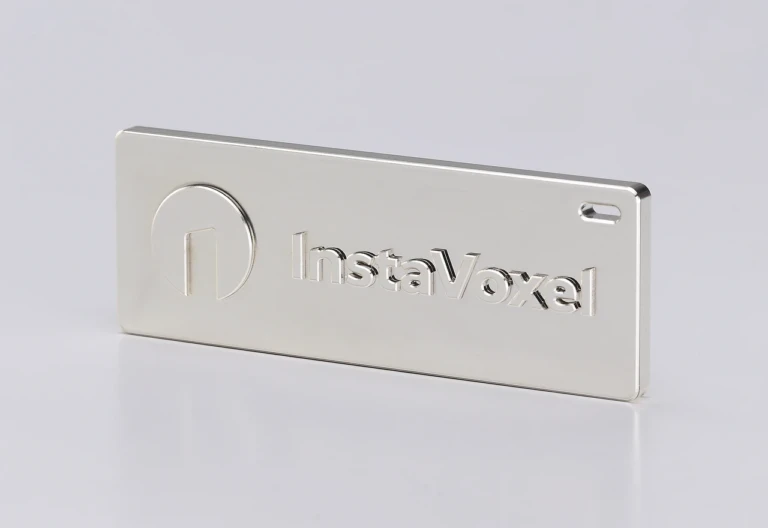

Silver Plating

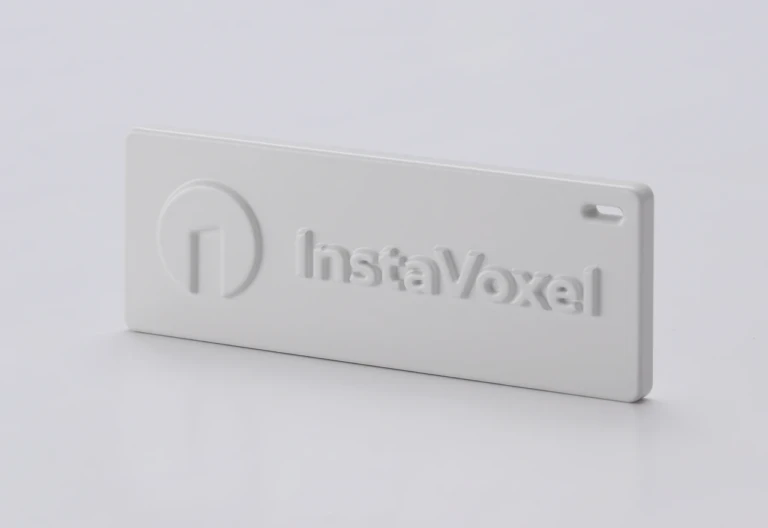

Powder Coating

Titanium FAQs

  • What are the main material properties of Titanium alloys?
    Titanium alloys boast excellent strength-to-weight ratio, corrosion resistance, and high temperature resistance. They also exhibit good biocompatibility, making them widely used in aerospace, medical devices, and chemical industries.
  • Which titanium grade is most suitable for machining?
    The best grade of titanium depends on specific requirements, but Grade 4 titanium is widely acknowledged as the strongest form of pure titanium, despite being less malleable than other grades. It offers exceptional corrosion resistance and impressive ductility, making it favored for demanding applications. Additionally, titanium's lower density makes it lighter than certain steels like stainless steel, enhancing its attractiveness in weight-sensitive industries.
  • What makes CNC machining titanium challenging?
    The CNC machining of titanium presents a myriad of challenges stemming from its unique properties. Firstly, its low thermal conductivity leads to cutting tools absorbing a significant portion of the generated heat during machining, posing thermal management issues. Secondly, titanium's propensity to demonstrate adhesive behavior can lead to the formation of long, stringy chips and the accumulation of an edge during machining, requiring meticulous chip control strategies. Furthermore, its low modulus of elasticity contributes to springback and chatter, impacting precision and surface finish quality. Lastly, titanium's high work hardening tendency renders it more resistant to deformation, complicating the attainment of desired shapes and dimensions and requiring meticulous machining techniques.
